Atlas Glasslift Telescopic 250 compact

Minicrane or Floor Crane for Glass Installation – Giraffe Series, 250 kg, adjustable in height from 1,950 to 2,800 mm. The extendable lifting trolley, with a lifting capacity of 250 kg and an extension height of up to 2.8 metres.

Compact design
Controlled lifting
Extended reach

Request this product

FREE ADVICE

Specifications

Category Balancers, Floor cranes, Lifting equipment, Lifting & Hoisting
Application Controlled Lifting Fast Setup Compact design,Extended Reach
WLL 150-250
Use Productline Traditional, level 2*Productline Smart, Ground Floor, Safety & Ergonomics, level 1*
art. number Atlas glasslift telescopic 250 compact

Description

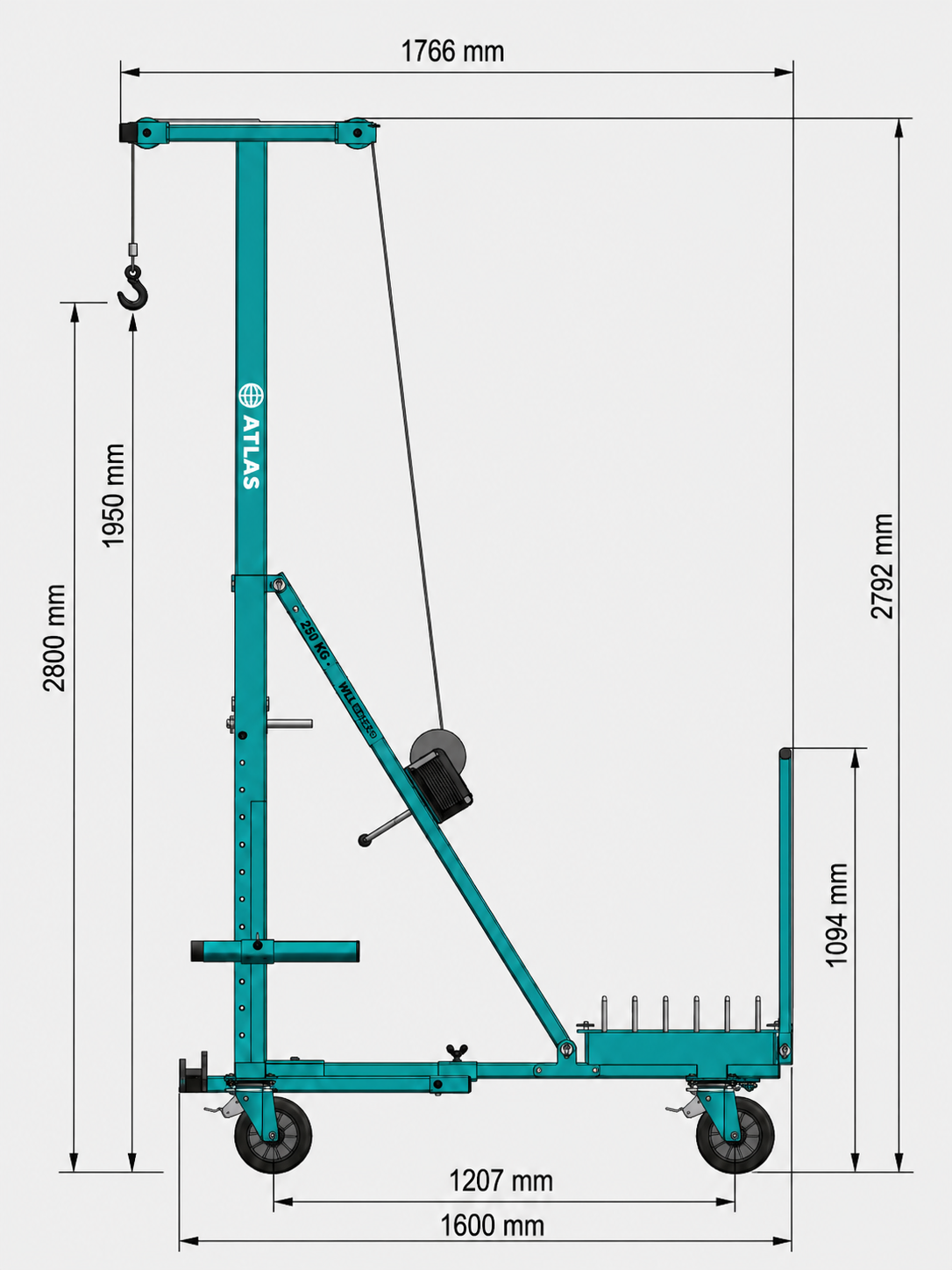

This extendable lifting trolley is fully demountable, making it easy to transport in your van and simple to position on upper floors or inside an elevator. All individual parts weigh less than 25 kg. The trolley can be extended from 1,950 mm to 2,800 mm and is equipped with six counterweights, allowing it to lift up to 250 kg.

Manuals & Downloads

Product - Get in touch

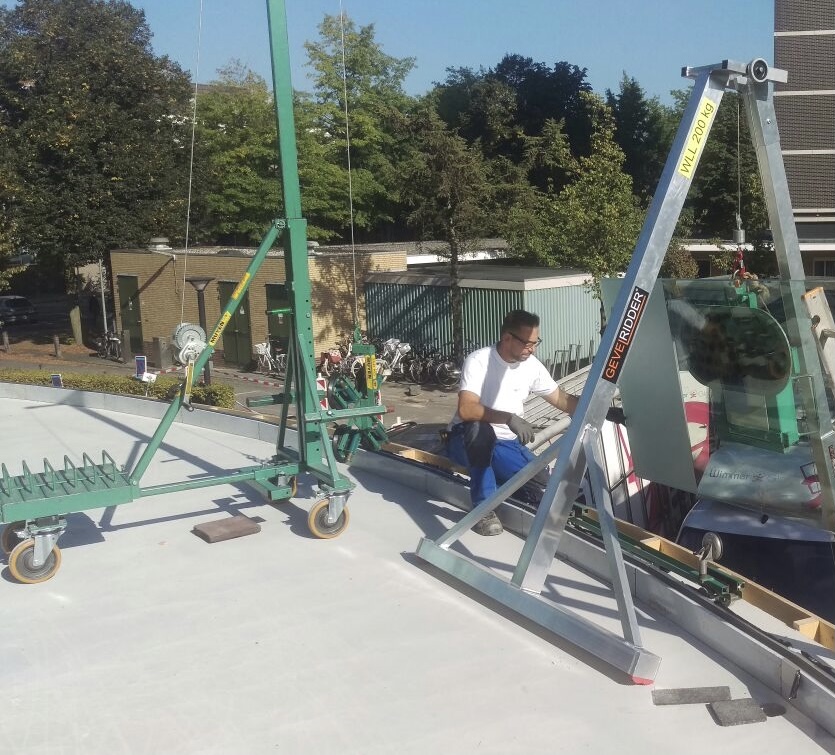

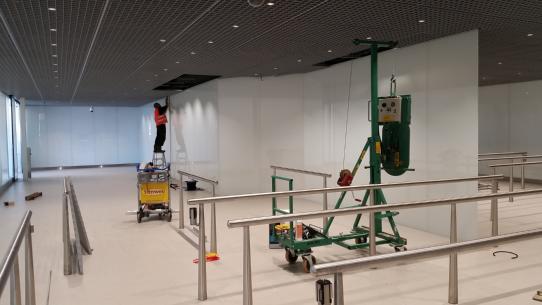

IN ACTION
