Glass Vacuümlifter Quattro Battery-powered 400 kg

Atlas Compact 400

Vacuum Lifter for Glass – Powerful 400 kg Capacity, Safe and Reliable. His own weight just 20 kg

Heavyweight 400kg Power
Dual Safety System
Compact design

FREE ADVICE

Specifications

Category Glass, Vacuum Lifters, Steel
Application Traditional built, no delicate electrical parts Compact design,Battery operated Secure hold – up to 20 min Lift- over window frames up to 80 mm
WLL 250-500
Use Productline Traditional, level 2*
art. number Atlas compact 400

Description

This vacuum lifter is built for professionals who need maximum strength and reliability in glass handling. With an impressive lifting capacity of up to 400 kg, it’s the perfect solution for handling large glass panels and window frames safely and efficiently.

With modular support blocks, this model makes it easy to lift and position frames and glazing units with precision and stability. The system can also be supplied in a dual safety configuration according to EN 13155 standards, featuring two tanks, two valves, and one pump for 350 kg — ensuring full compliance and peace of mind on every job.

Even with its high lifting power, the design remains compact and user-friendly, offering smooth operation and long-term reliability.

Key features:

Lifting capacity up to 400 kg
Optional dual system (EN 13155) with 2 tanks, 2 valves, 1 pump 350 kg
Lightweight, robust design for professional use
Modular block system for lifting frames and panels
Safe and precise vacuum control for reliable grip
For glaziers and installation teams looking for the best tool for safe glass handling, this 400 kg vacuum lifter delivers the perfect balance between power, precision, and safety.

Volt 12 V

Dimensions: 650x750x270 mm

EG: 24 kg

Manuals & Downloads

Product - Get in touch

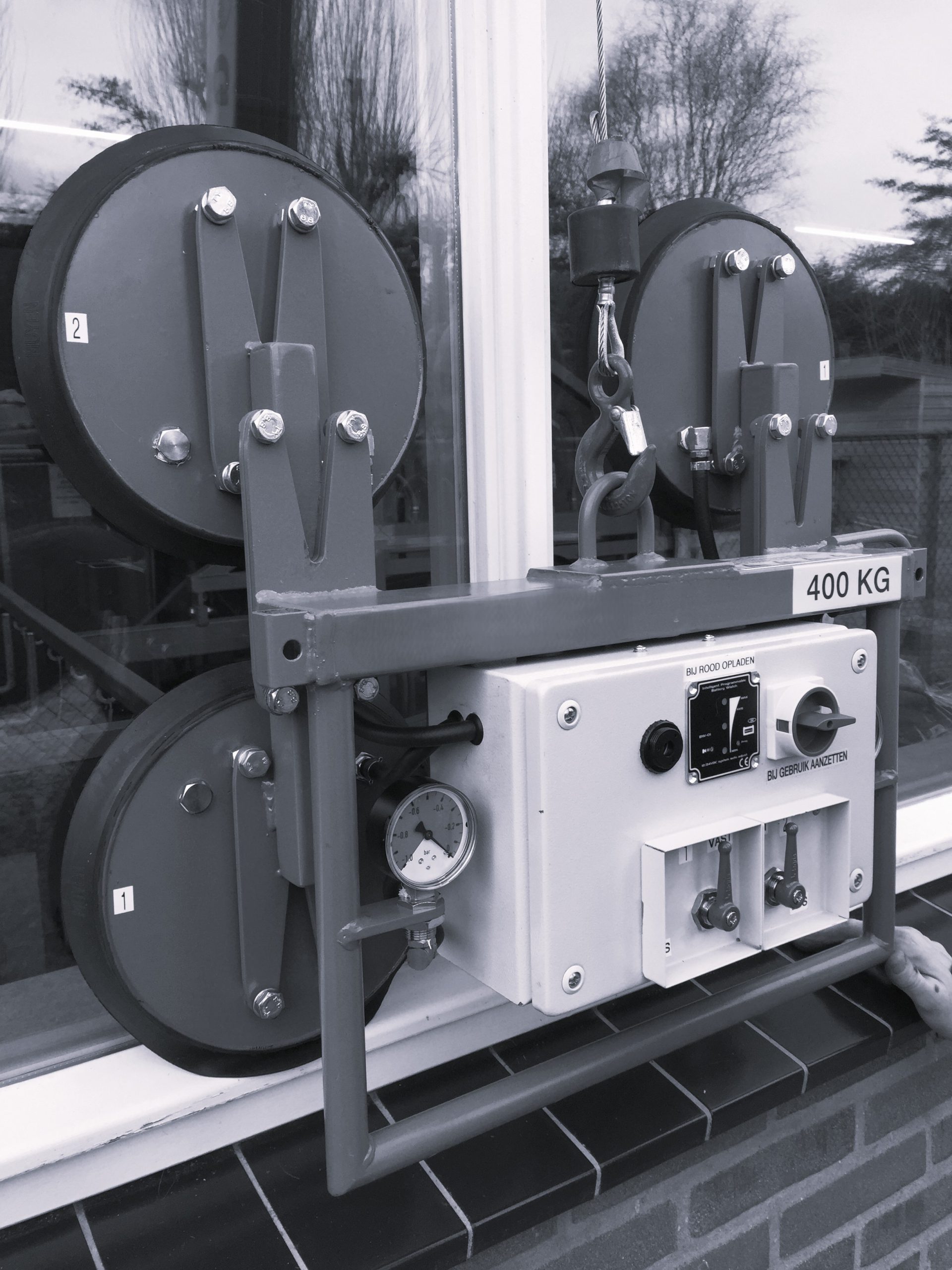

IN ACTION
