VA103F vacuumlifter Muyen, on 380 or 220 volt for use in your storage
  • va103F vacuumlifter Muyen
  • VA103F vacuumlifter Muyen, on 380 or 220 volt for use in your storage
  • va103F
  • va103f
  • va103f
  • va103f

Product - Get in touch

Bas Jansen

Glasstransport specialist

“An ideal product!”

Specifications
Description

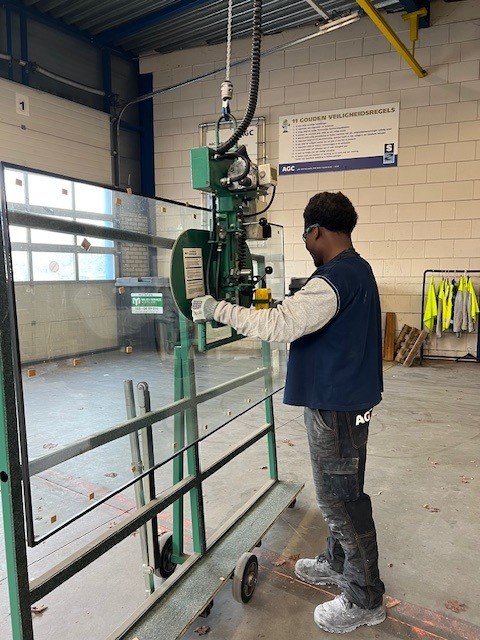

This machine is special made to use in your storage, on 220 or 380 volt. The machine has a oval plate 80×40 cm, turn 360 degrees and tilt. This machine you use on a crane inside you factory, for the buildingsite you use a battery operated machine.

You can put the glass on the cutting table, but he can also turn the glass for the grinder. It is suitable for 500 kg but can also be delivered as 750kg or 1200 kg. It is suitable for the size to about 3×4 meters, above we recommend a machine with multiple pads. He has an acoustic signal. The acoustic system works on battery because it has to stay working when the electric goes down, there is a charger to reload but once a year you need to change battery’s You must own a current electric connection provided by the crane hook. Suitable for Glass, nature stone, steel etc.

Dimensions: lxwxh 1200x800x350 mm.

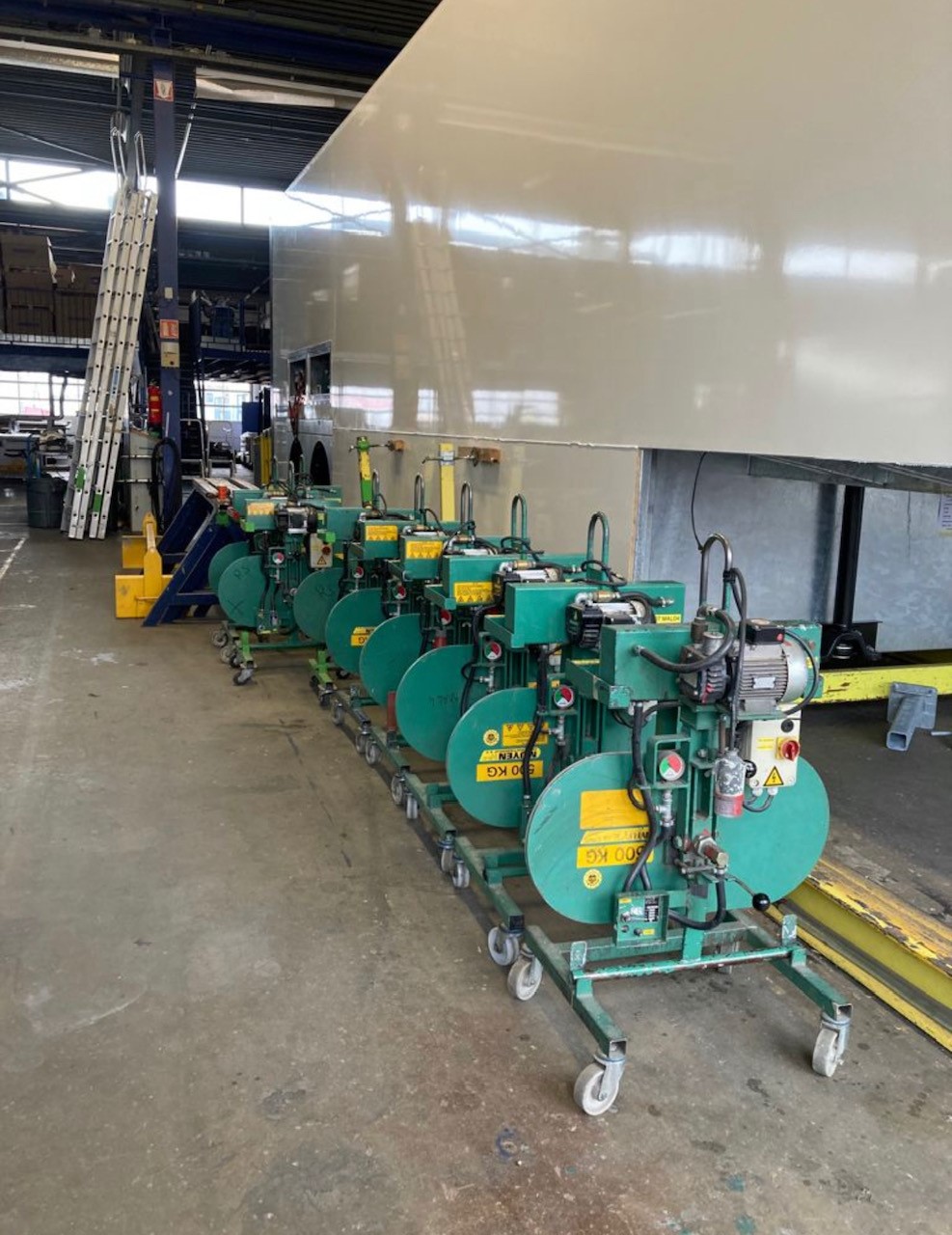

You see also pictures off the 1200 kg version, dimensions off the suction plate 1200×750 mm, own weight about 120 kg. Code VA103F1200GHH

See the product in action!
