Description

Your advantage: With this basic battery unit you can also buy athor pads to fitt, for example a pad for sandwich roof panels or a roof glazing pad. The machine is very compact and you have excellent service from you agents or direct from our production unit in Holland.
This machine is safety class 2*

This machine can turn 360 degrees and tilt horizontal to vertical position. The machine is 1 system and has a oval plate 500 kg. It will be delivered with battery, charger, extra spare part like edges, gleu, volt meter etc, these parts can be delivered in a separate suitcase, all available from stock. This machine needs maintenance once a year by deliverer. Dimensions about lxwxh 800x30x1200mm.

This machine can turn 360 degrees and tilt horizontal to vertical position. High model, special suitable for sandwich panels, etc.

Description

VAcuumlifter 750

The machine is build compact so you simply hoist close under roofs. The device is supplied for 500 and 750 kg. The unit has small feet and is very compact making it easily transportable. Suitable for all types of surfaces such as glass, concrete, plastic, wood, etc. Not suitable for the horizontal movement of long narrow panels. (Due to bending).

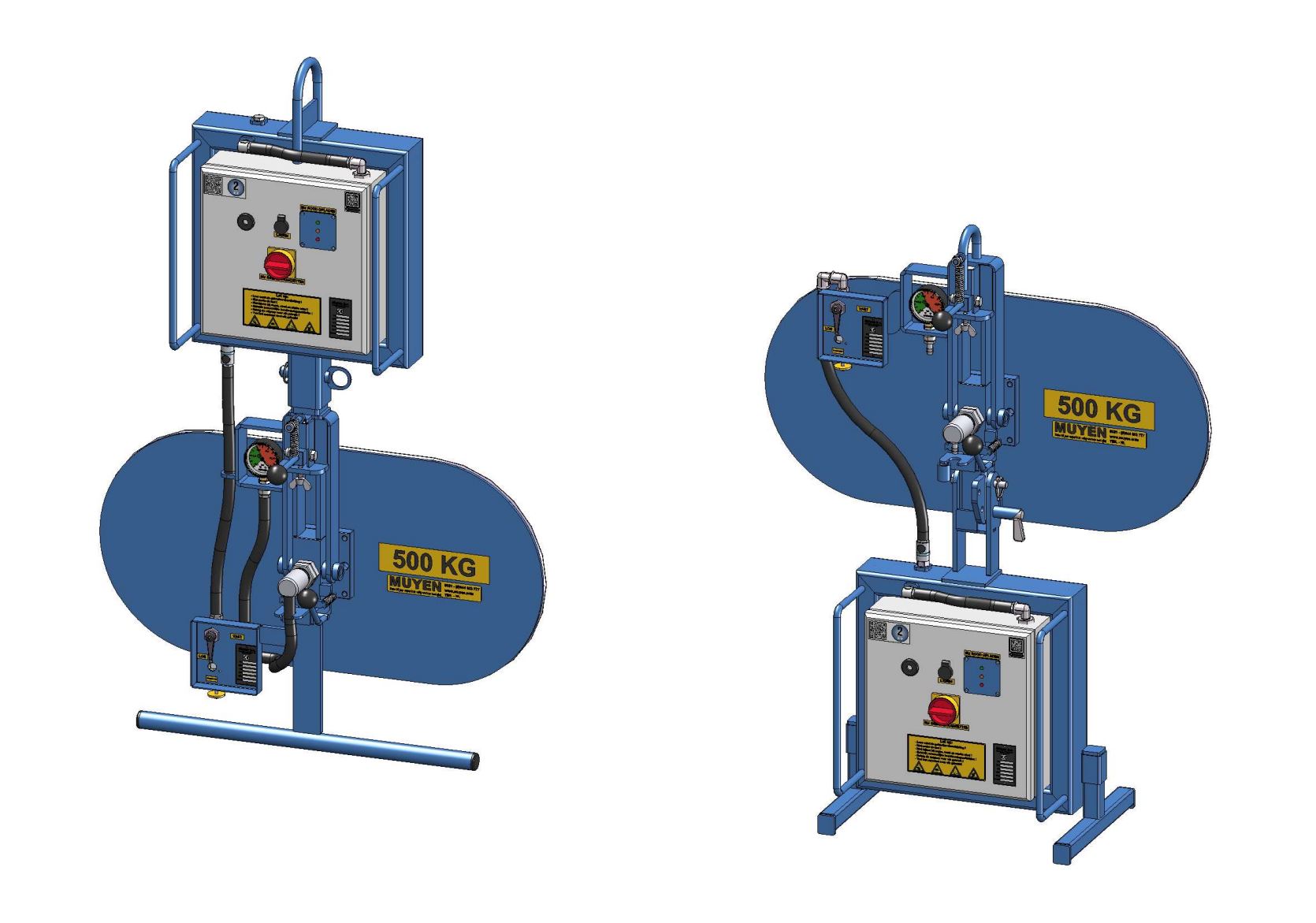

A vacuum lifter low model 500 or 750 kg, turn 360 degrees and tilt horizontal to vertical position. When you work with sandwich panels you choose the heigh model with the batterybox on top.

Options: – Radio Control – 500 kg – quick change system.

Description

Radiocontroll

Radio control is one of the best ways to lift safely. Specifically when installing glass, we have to push or pierce the glass plates into a frame, a precision job that can only be done by truly experienced professionals. “If” something goes wrong (fortunately not often), it is precisely with that last action, that last 10 to 5 cm in the frame. The glass breaks due to impact or breaking, whereby the vacuum lifter always comes loose and people are injured. This dangerous situation is prevented by radio control.

Dangerous situations are prevented.

The Battery Vacuum with radio control can be designed in various versions: High or low, Battery unit underneath or above, the battery unit is interchangeable, allowing you to create a Battery Vacuum with countless possibilities, double or single system is of course also possible.

The battery operated machine with radio controll, vacuumlifter on battery, can be delivered with serveral types off vacuum pads. This one is suitabel for 500 kg, turn and tilt. Lifting and hoisting glass safe, lite and easy, all for a low price.

We keep it simple and focus on what matters, your health and safety!

Description

This vacuum machine battery operated low model battery unit that you can change. So this is The device is adjustable so you can tilt, rotate, but also bigger and smaller and Narrow blades. Multifunctional and a considerable weight. Trolley is included.

WLL: 1000 kg
2000/3000 mm long x400mm wide x 900/1500 mm high
Volt: 12
Weight machine total: 195 kg

Description

Twin500 | Battery-Powered Vacuum Lifter 500kg, Dual System (or Single)

The Twin500 battery-powered vacuum lifter (500 kg capacity) is designed for customers who appreciate the user-friendly features of our V500 and SP models, but require a dual vacuum system. It is equipped with four suction pads, distributed evenly across the load and connected crosswise across two independent systems. When you like model but do not need the dual system, we provide this machine with the very popular quick change system, availabel high or low or with RC.

This lifter features a dual vacuum system, consisting of 2 pumps, 2 tanks, and 2 batteries. Thanks to this dual system, the Twin500 meets Safety Class 3* standards.

Important Notice:
A vacuum lifter does not form a fixed connection with the load. Therefore, fall protection must always be used, and the drop zone must be cleared. This applies to all vacuum lifters, regardless of safety class, whenever lifting heights exceed 1.8 meters.

Specifications

• WLL (Working Load Limit): 500 kg
• Dimensions (LxWxH): 1160 x 900 x 320 mm
• Voltage: 12V
• EG: 50 (quick change system 2x 25 kg)
• Safety Class: 3* or 2*

Description

This vacuumlifter has one basic unit where you can change suction pads very quick and safe. So you do not need to buy a complete system for a athor job but you only need a new vacuum pad.

This system we delivered with great succes for several years in single system but now we also designed this in dual system.

Description

The battery operated vacuum machine for 2500kg, turn and tilt 360 degrees, with dual cicuit and 2 pumps.

Description

You choose the basic unit according to your wishes, Basic unit lowered and tiltable. high or high/low and optional radio control.

You choose the suctionpad according to your wishes and complete with the basic unit.

You can do anything: roof glazing, curved glass,bigger glass up to 1000 kg, concrete, steel, standwichpanels.

Changing and moving the battery box High model: https://youtube.com/shorts/H_OOgIW60vE?si=kyRVDABlmBstq2nI
Changing and moving the battery box low model: https://youtube.com/shorts/EyfFrk-w7_Q?si=apNyH9AQ_1knWWw6
The high model, moving, turn and tilt: https://youtube.com/shorts/YhvV4GY3JAI?si=uk7RF7SLA2r3n-MM

Description

This machine is special made to use in your storage, on 380 volt. The machine has a oval plate 80×40 cm, turn 360 degrees and tilt. This machine you use on a crane inside you factory, for the buildingsite you use a battery operated machine.

You can put the glass on the cutting table, but he can also turn the glass for the grinder. It is suitable for 500 kg but can also be delivered as 750kg. It is suitable for the size to about 3×4 meters, above we recommend a machine with multiple pads. He has an acoustic signal. The acoustic system works on battery because it has to stay working when the electric goes down, there is a charger to reload but once a year you need to change battery’s You must own a current electric connection provided by the crane hook. Suitable for Glass, nature stone, steel etc.

Dimensions: lxwxh 1200x800x350 mm.

You see also pictures off the 1200 kg version, dimensions off the suction plate 1200×750 mm, own weight about 120 kg.

Further we show on the pictures a special build model, the bracket is built 450 mm backwards so that the user is outside the fall area.
