Test Product

muyen — Mon, 17 Aug 2026 13:03:30 +0000

Test Product

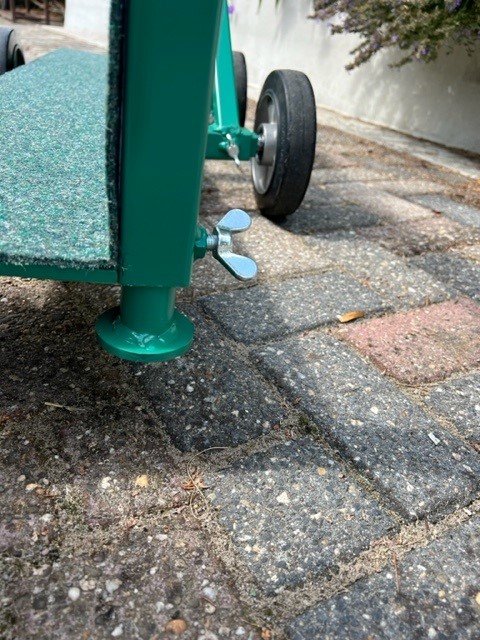

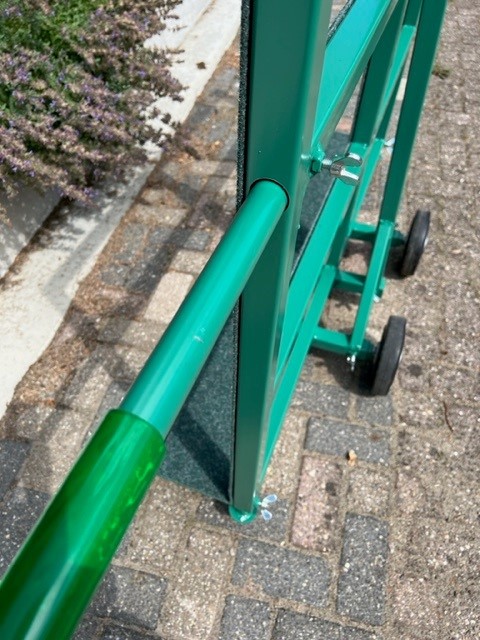

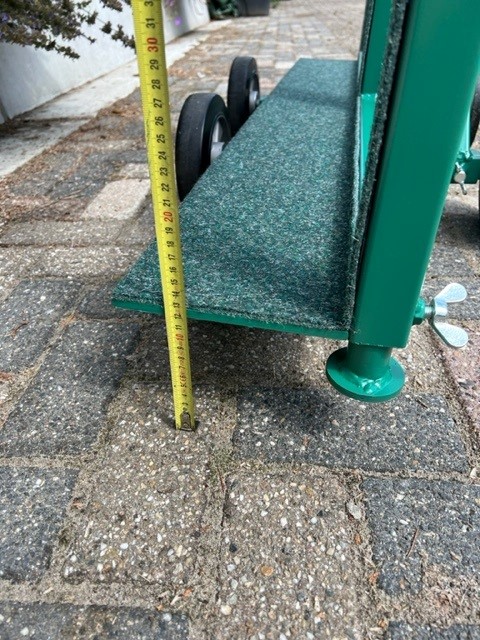

Glass Sledge, 1,500 mm long, with vacuum pads, 150 kg capacity

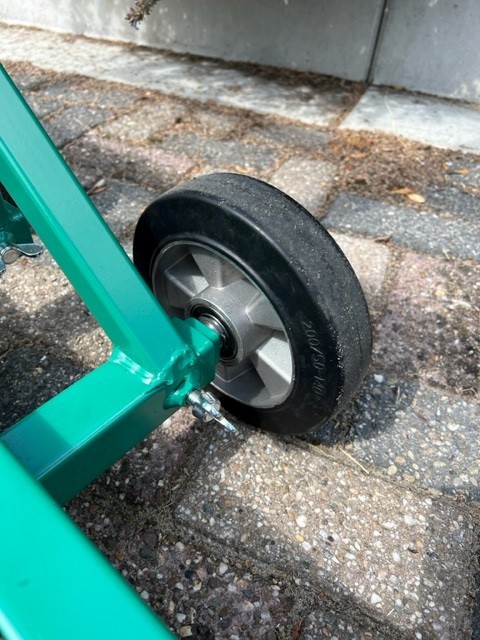

This glass sledge is 1,500 mm long and is equipped with pneumatic wheels in the centre.

Work Efficiently
Work Efficiently
Work Efficiently

Request this product

FREE ADVICE

Specifications

Category All Terrain, Glass Carts
Application 90* tilt 180* rotation Strong work – Zero back pain!
WLL 150-250
Use Productline Traditional, level 2*

Description

Glass sledge, 1500 mm long, with vacuum pads. A very good product to use for people with back problems. With flexible vacuum pads, a very usefull light, small glass transport tool. With arwheels in the middle so he turns easy in small rooms, 45 mm wide.

Manuals & Downloads

Product - Get in touch

IN ACTION

Atlas Glasslift Telescopic 250 compact

admin — Mon, 13 Jul 2026 12:12:09 +0000

Atlas Glasslift Telescopic 250 compact

Minicrane or Floor Crane for Glass Installation – Giraffe Series, 250 kg, adjustable in height from 1,950 to 2,800 mm. The extendable lifting trolley, with a lifting capacity of 250 kg and an extension height of up to 2.8 metres.

Compact design
Controlled lifting
Extended reach

Request this product

FREE ADVICE

Specifications

Category Balancers, Floor cranes, Lifting equipment, Lifting & Hoisting
Application Controlled Lifting Fast Setup Compact design,Extended Reach
WLL 150-250
Use Productline Smart, Ground Floor, Safety & Ergonomics, level 1*Productline Traditional, level 2*
art. number Atlas glasslift telescopic 250 compact

Description

This extendable lifting trolley is fully demountable, making it easy to transport in your van and simple to position on upper floors or inside an elevator. All individual parts weigh less than 25 kg. The trolley can be extended from 1,950 mm to 2,800 mm and is equipped with six counterweights, allowing it to lift up to 250 kg.

Manuals & Downloads

Product - Get in touch

IN ACTION

Atlas Pro 500

admin — Mon, 13 Jul 2026 10:10:12 +0000

Atlas Pro 500

Vacuumlifter on battery, 500 kg, turn 360 degrees and tilt, easy maintenance very stable and long lasting machine. This machine has ze quick change battery box so if you need a athor suction pad you do not need to buy a complete new machine but only the suctionpad. Model V500H-SP500H

360° Rotation
90° Tilt
Battery operated

Request this product

FREE ADVICE

Specifications

Category Glass, Vacuum Lifters, Steel, Concrete / natural stone, Sandwich panels
Application 360* Rotation Special edges for glass, sandwichpanels, concrete, nature stone etc,Battery operated Secure hold – up to 20 min 90* tilt
WLL 500+
Use Productline Traditional, level 2*

Description

Your advantage: With this basic battery unit you can also buy athor pads to fitt, for example a pad for sandwich roof panels or a roof glazing pad. The machine is very compact and you have excellent service from you agents or direct from our production unit in Holland.
This machine is safety class 2*

This machine can turn 360 degrees and tilt horizontal to vertical position. The machine is 1 system and has a oval plate 500 kg. It will be delivered with battery, charger, extra spare part like edges, gleu, volt meter etc, these parts can be delivered in a separate suitcase, all available from stock. This machine needs maintenance once a year by deliverer. Dimensions about lxwxh 800x30x1200mm.

This machine can turn 360 degrees and tilt horizontal to vertical position. High model, special suitable for sandwich panels, etc.

Manuals & Downloads

Product - Get in touch

IN ACTION

Atlas Pro 750

admin — Wed, 24 Jun 2026 07:17:50 +0000

Atlas Pro 750

Vacuumlifter on battery, 750 kg, turn and tilt 360 degrees, Weight 70 kg.

360℃ Rotation
90℃ Tilt
Battery operated

Request this product

FREE ADVICE

Specifications

Description

The machine is build compact so you simply hoist close under roofs. The device is supplied for 500 and 750 kg. The unit has small feet and is very compact making it easily transportable. Suitable for all types of surfaces such as glass, concrete, plastic, wood, etc. Not suitable for the horizontal movement of long narrow panels. (Due to bending).

A vacuum lifter low model 500 or 750 kg, turn 360 degrees and tilt horizontal to vertical position. When you work with sandwich panels you choose the heigh model with the batterybox on top.

Options: – Radio Control – 500 kg – quick change system.

Manuals & Downloads

Product - Get in touch

IN ACTION

Atlas Pro Spider 600

admin — Tue, 23 Jun 2026 14:03:05 +0000

Atlas Pro Spider 600

This vacuumlifter works with the quick change batterybox low model. Turn and tilt. 250-400-600 kg

360℃ Rotation
90℃ Tilt
Battery operated

Request this product

FREE ADVICE

Specifications

Category Glass, Vacuum Lifters, Steel
Application Battery operated Secure hold – up to 20 min 90* tilt 360* Rotation Traditional built, no delicate electrical parts
WLL 1-150 150-250 250-500
Use Productline Traditional, level 2*

Description

You can use it with 2 pads 250 kg, 4 pads 400 kg and 6 pads 600 kg. The max size 920×1650 mm.

Manuals & Downloads

Product - Get in touch

Atlas Pro 1000 Spider

admin — Tue, 23 Jun 2026 13:50:09 +0000

Atlas Pro 1000 Spider

This vacuum machine battery operated low model battery unit that you can change. So this is The device is adjustable so you can tilt, rotate, but also bigger and smaller and Narrow blades. Multifunctional and a considerable weight. Trolley is included.

360℃ Rotation
90℃ Tilt
Battery operated

Request this product

FREE ADVICE

Specifications

Category Glass, Vacuum Lifters, Steel
Application Secure hold – up to 20 min 90* tilt 360* Rotation Traditional built, no delicate electrical parts Battery operated
WLL 500+
Use Productline Traditional, level 2*

Description

WLL: 1000 kg
2000/3000 mm long x400mm wide x 900/1500 mm high
Volt: 12
Weight machine total: 195 kg

Manuals & Downloads

Product - Get in touch

IN ACTION

Atlas Compact 200 Curve

admin — Tue, 23 Jun 2026 10:14:08 +0000

Atlas Compact 200 Curve

Comes with a suitcase with spare parts.

This machine can also be delivered as a dual system, it looks te same but the maximum lift weight is 150 kg.

Work efficiently
Unburdens
Safety

Request this product

FREE ADVICE

Specifications

Description

Comes with a suitcase with spare parts.

This machine can also be delivered as a dual system, it looks te same but the maximum lift weight is 150 kg.

Manuals & Downloads

Product - Get in touch

IN ACTION

Atlas Compact 250

admin — Tue, 31 Mar 2026 15:11:05 +0000

Atlas Compact 250

Controlled lifting
Battery operated
360℃ rotation

Request this product

To the Webshop

Specifications

Category Glass, Vacuum Lifters, Steel
Application Lift- over window frames up to 80 mm Traditional built, no delicate electrical parts Controlled Lifting Compact design,Battery operated Secure hold – up to 20 min
WLL 150-250
Use Productline Traditional, level 2*
art. number Atlas Compact 250

Description

Our 360° rotatable vacuum lifter is the ultimate solution for safe and precise glass handling. Engineered to lift up to 250 kg, this tool combines strength with lightweight design, giving you full control over large panels and window frames. The 360° rotation feature allows smooth turning and positioning, making it perfect for installing windows, glass façades, or complex frames with minimal effort.

For professionals, this vacuum lifter is the best tool for safe glass handling, offering ergonomics, flexibility, and efficiency in one compact, robust solution.

Key features:
Lifts up to 250 kg safely
Full 360° rotation for effortless positioning
Lightweight and easy to handle
Reliable vacuum system for secure grip
Enhance your workflow and protect your team and glass with this strong, versatile, and easy-to-use vacuum lifter — the best tool for safe glass handling.

This model offers 360-degree rotation and comes with an extended, detachable lifting eye. The weight is only 20 kg, and the dimensions are 620 × 270 mm (L x W). The height ranges from 450 to 580 mm. WLL=250 kg

Manuals & Downloads

instructions

Product - Get in touch

IN ACTION

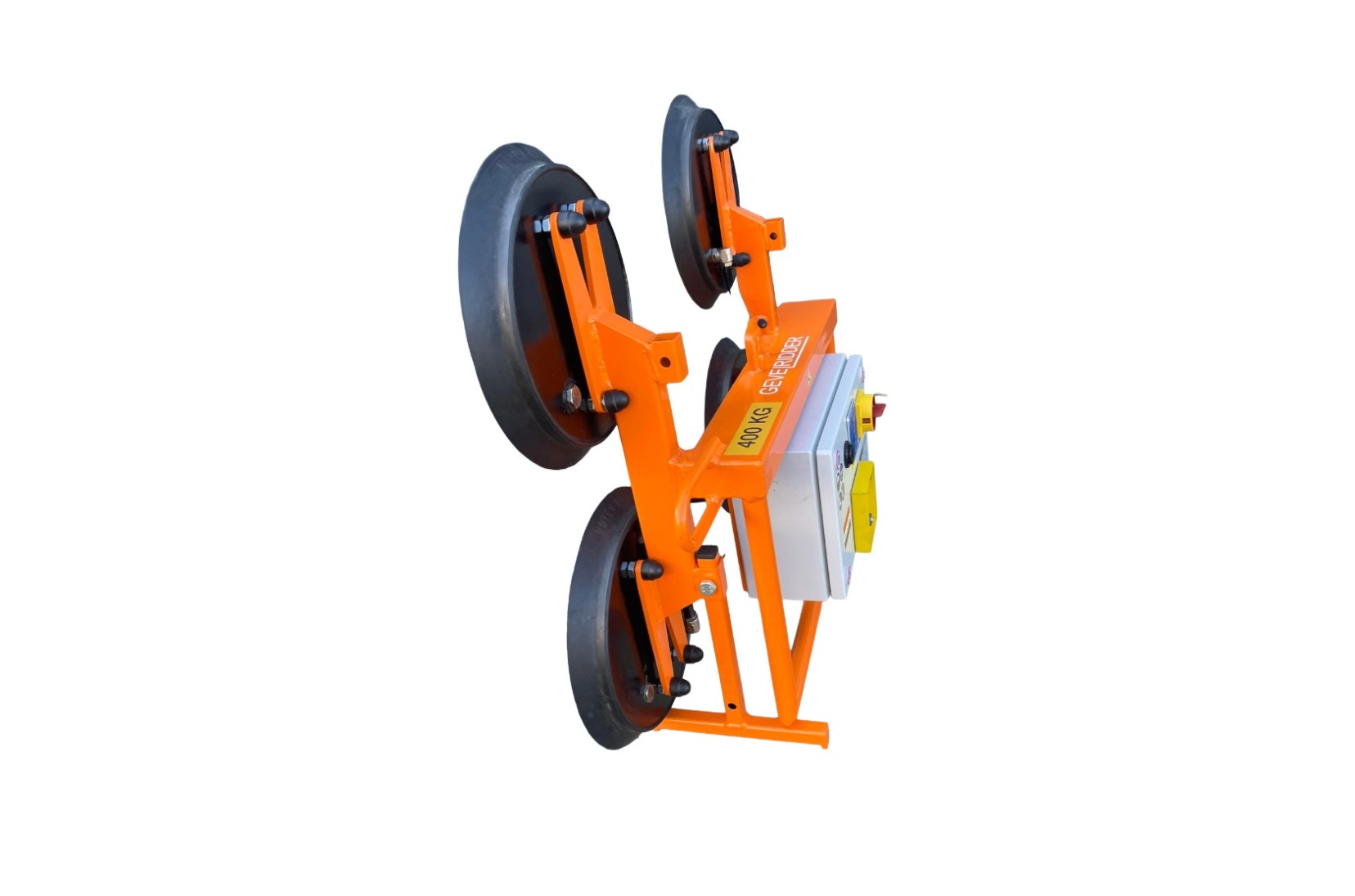

Atlas V400 Battery-Powered Vacuum Lifter

muyen — Mon, 30 Mar 2026 15:34:22 +0000

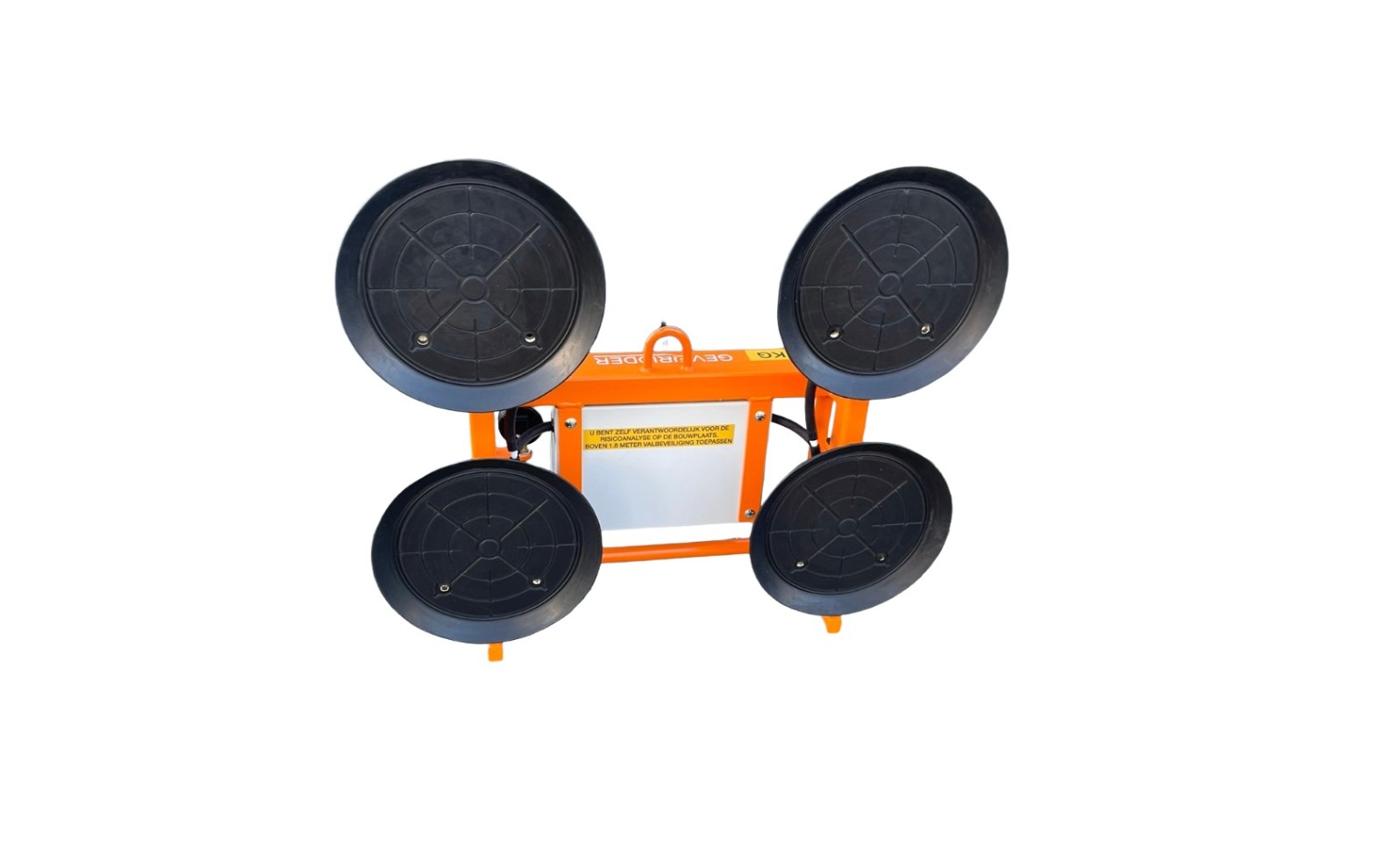

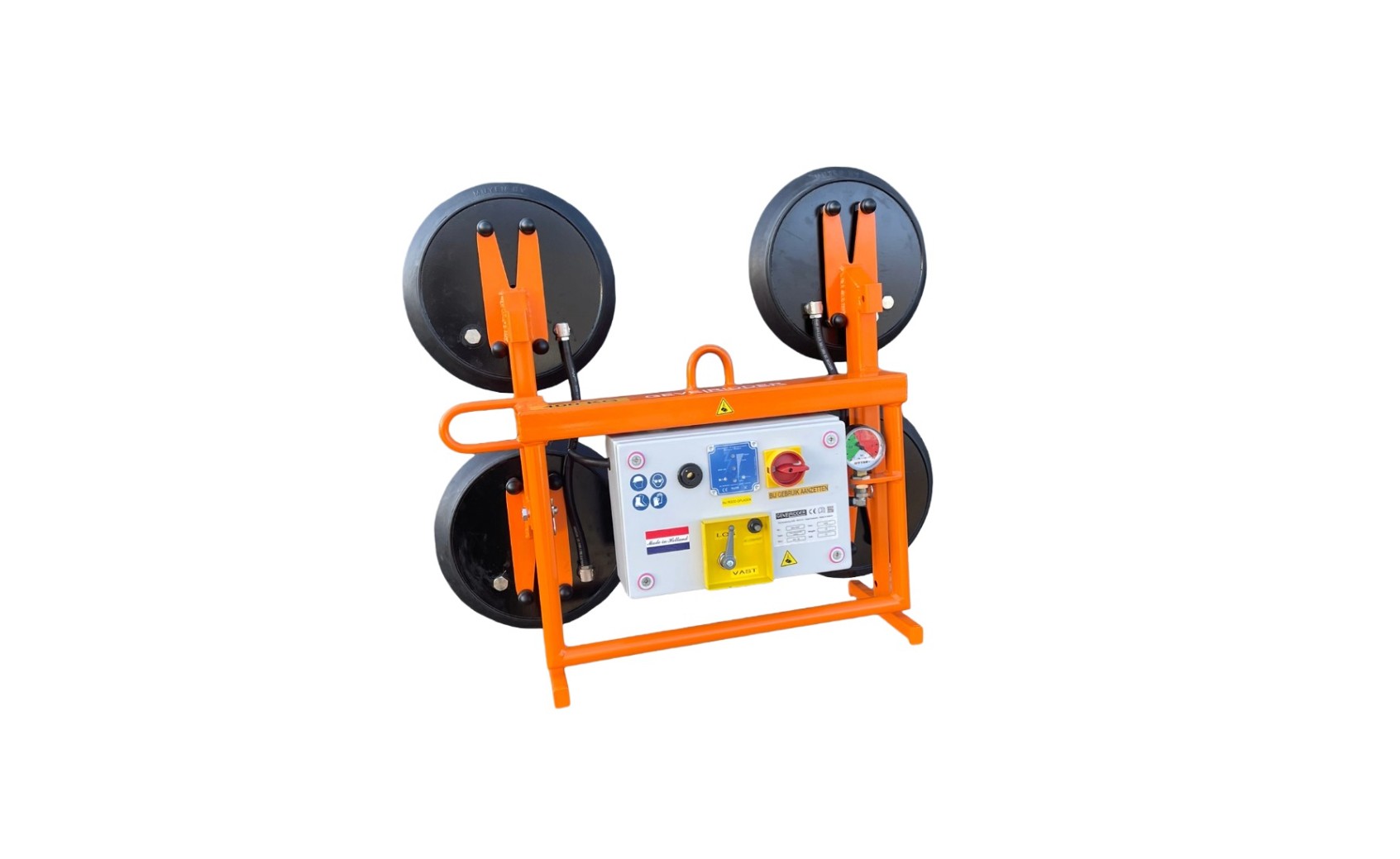

Atlas V400 Battery-Powered Vacuum Lifter

Vacuum Lifter for Glass, – Powerful 400 kg Capacity, Safe and Reliable. His own weight just 30 kg, Atlas by Astrid

Heavyweight 400kg Power
Lightweight design, maximum safety
Compact design

Request this product

FREE ADVICE

Specifications

Category Glass, Vacuum Lifters, Steel
Application Lift- over window frames up to 80 mm Traditional built, no delicate electrical parts Compact design,Battery operated Secure hold – up to 20 min
WLL 250-500
Use Productline Traditional, level 2*
art. number Atlas V400

Description

V400 Battery-Powered Vacuum Lifter – Exceptionally Light, Impressively Powerful

The V400 battery-powered vacuum lifter has been developed for professionals who want maximum lifting performance combined with an exceptionally low dead weight. While many vacuum lifters become heavy and cumbersome as lifting capacity increases, the V400 proves there is another way. Compact, easy to handle and still powerful enough to lift loads of up to 400 kg.

Its low weight makes a significant difference in everyday use. The V400 is easier to transport, quicker to position on site and much more convenient to move to upper floors or locations where every kilogram matters. At the same time, it provides the strength and stability required for professional glass installation.

Lifting capacity up to 400 kg

Despite its compact construction, the V400 offers an impressive lifting capacity of up to 400 kg. This makes it suitable for lifting and positioning large glass panels as well as other smooth, airtight materials.

The V400 has been designed as a practical working machine: no unnecessary weight or overly complicated technology, but exactly what you need to work safely, efficiently and with full control.

Secure Hold – additional safety for up to 20 minutes

Safety always comes first when working with vacuum lifting equipment. That is why the V400 is equipped with our Secure Hold system.

In the event of an unexpected malfunction or power failure, the vacuum can be maintained for up to approximately 20 minutes. This provides the operator with an important additional safety reserve and sufficient time to move the load into a safe and controlled position.

The Secure Hold system not only provides additional protection, but also greater peace of mind while working. You know that the load will not immediately lose its vacuum grip if something unexpected happens to the power supply.

Ideal for glass positioned deeper inside the frame

One of the V400’s particularly practical advantages is its ability to handle glass that is recessed deeper within a window or façade frame.

Thanks to its construction, the vacuum lifter can reach over a frame section or mullion of up to approximately 8 cm. This allows the suction pads to be positioned correctly even when the glass does not sit flush with the outer face of the frame.

This makes the V400 particularly suitable for renovation work, façade construction and installation projects where conventional vacuum lifters may simply be too bulky to reach the glass properly.

Traditional technology – reliable and easy to maintain

The V400 has deliberately been designed using proven, conventional components.

Instead of unnecessary complex electronics, it uses reliable technology that has proven itself in daily professional use. This means:

Less maintenance
Fewer failure-prone components
Easy fault diagnosis
Fast repair possibilities
Components that are straightforward to service and replace

This is particularly important on site. A vacuum lifter needs to work when you need it. And if something does go wrong, you do not want a machine sitting idle for days while a specialist electronic component has to be ordered or diagnosed.

Designed to minimise downtime

A reliable vacuum lifter is about more than just the machine itself. That is why we combine the simple and dependable technology of the V400 with the service and technical expertise of Gevelridder.

If you have a question or experience a fault, our team can quickly help analyse the problem and, wherever possible, provide an immediate solution. Because the V400 is built using recognisable and easily accessible components, many issues can be diagnosed and resolved quickly.

With the V400 and the support of Gevelridder, downtime is kept to an absolute minimum.

A lightweight powerhouse for everyday professional use

The V400 is designed for companies that look beyond lifting capacity alone. Weight, safety, accessibility, maintenance and reliability all matter.

Up to 400 kg of lifting power. Exceptionally low dead weight. Secure Hold for up to 20 minutes. Suitable for glass recessed up to approximately 8 cm within the frame. And built using reliable, easy-to-maintain technology.

The V400 is built to work — day after day.

Key benefits:
Lifting capacity up to 400 kg
Exceptionally low dead weight
Compact and easy to handle
Secure Hold system: vacuum reserve for up to approximately 20 minutes in the event of a malfunction
Suitable for glass recessed up to approximately 8 cm inside the frame
Proven, conventional components
Low-maintenance design
Fast fault diagnosis and problem solving
Designed for intensive professional use
Backed by the service and technical expertise of Gevelridder

V400 – maximum grip, minimum weight.

Volt 12 V

Dimensions: 650x750x270 mm

EG: 24 kg

Manuals & Downloads

instructions

Product - Get in touch

IN ACTION

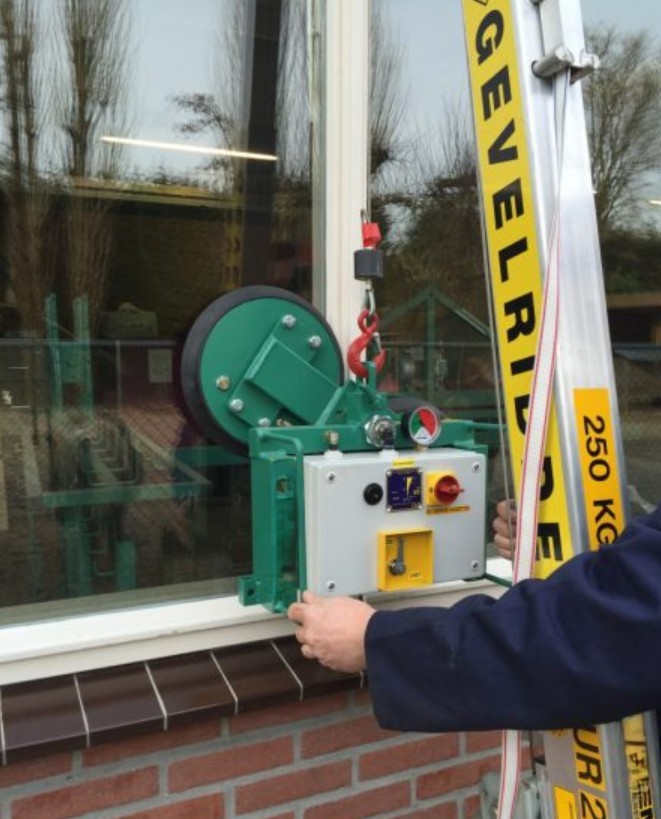

Atlas Compact 250 Pro

admin — Sun, 29 Mar 2026 15:39:49 +0000

Atlas Compact 250 Pro

360° Rotatable Flex
Ultimate Positioning Control
Battery Powered Safety

Request this product

FREE ADVICE

Specifications

Category Glass, Vacuum Lifters, Steel
Application 360* Rotation Traditional built, no delicate electrical parts Controlled Lifting Compact design,Battery operated Secure hold – up to 20 min
WLL 150-250
Use Productline Traditional, level 2*
art. number Atlas Compact 250 turn

Description

For professionals, this vacuum lifter is the best tool for safe glass handling, offering ergonomics, flexibility, and efficiency in one compact, robust solution.

Key features:

Lifts up to 250 kg safely
Full 360° rotation for effortless positioning
Lightweight and easy to handle
Reliable vacuum system for secure grip
Enhance your workflow and protect your team and glass with this strong, versatile, and easy-to-use vacuum lifter — the best tool for safe glass handling.

Manuals & Downloads

Product - Get in touch

IN ACTION

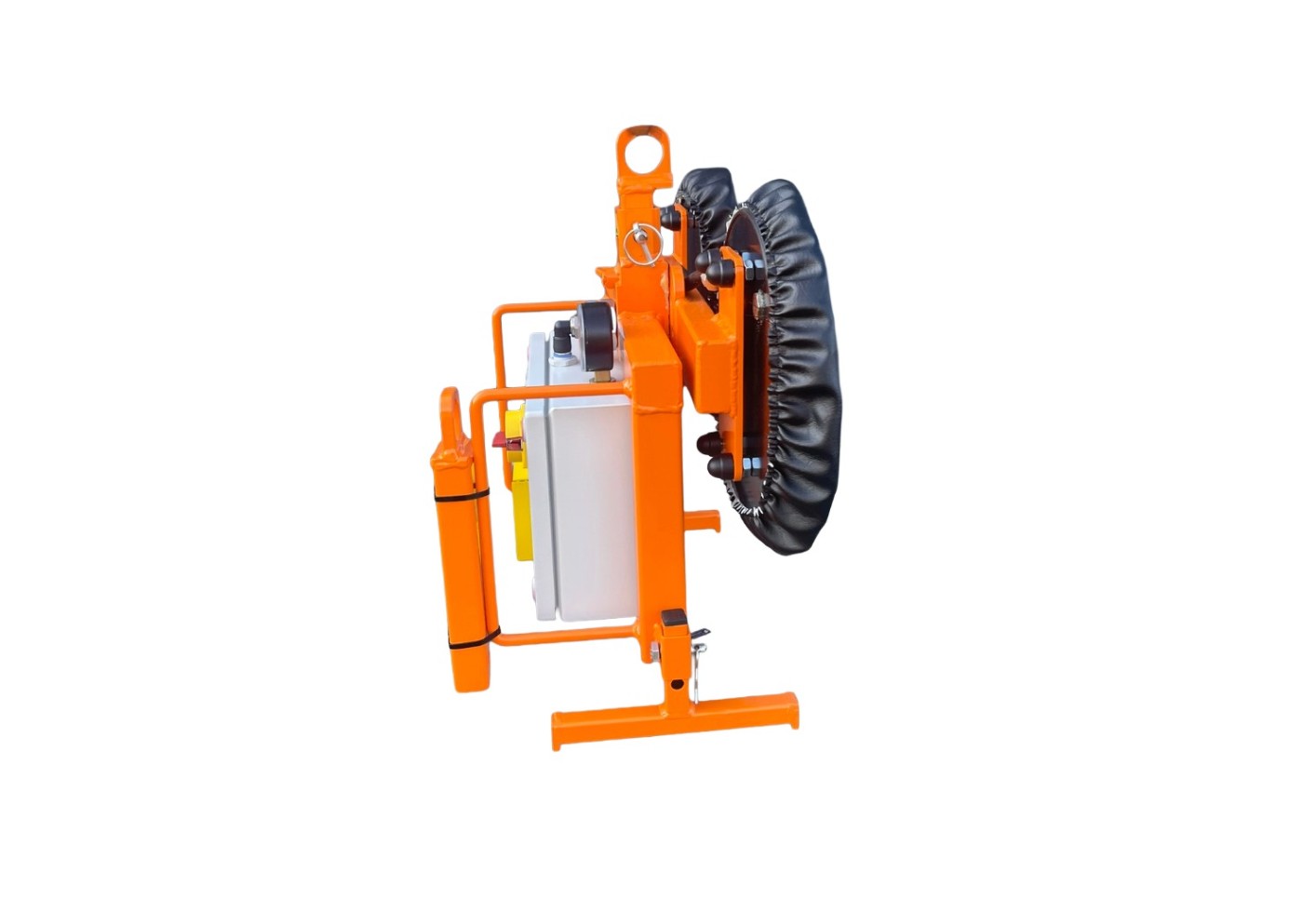

Atlas Compact 250 Flex

admin — Sat, 28 Mar 2026 15:48:14 +0000

Atlas Compact 250 Flex

360° Rotation
Battery Operated
Compact Design

Request this product

plan an appointment

Specifications

Category Glass, Vacuum Lifters, Steel
Application 90* tilt 360* Rotation Traditional built, no delicate electrical parts Controlled Lifting Compact design,Battery operated Secure hold – up to 20 min
WLL 150-250
Use Productline Traditional, level 2*
art. number Atlas Compact 250 Flex

Description

This vacuumlifter is very lightweight just 25 kg, complete on battery and can turn and tilt.

Manuals & Downloads

instructions
